Ceiling Mounts for TVs 40″ to 55″

Name: ERMCM1-01B
SKU: ERMCM1-01B
Availability: InStock

ERMCM1-01B

ERMCM1-01B Ceiling TV Mount
Compact, versatile, and built for a better view.

The ERMCM1-01B ceiling mount supports most 40″ to 55″ TVs up to 99 lbs. Its tilt and swivel capabilities help reduce screen glare and provide a comfortable viewing angle in any room. With 9 inches of height adjustment and post-install leveling, you can achieve a clean, custom setup with ease. Safety tested and UL certified for reliable performance.

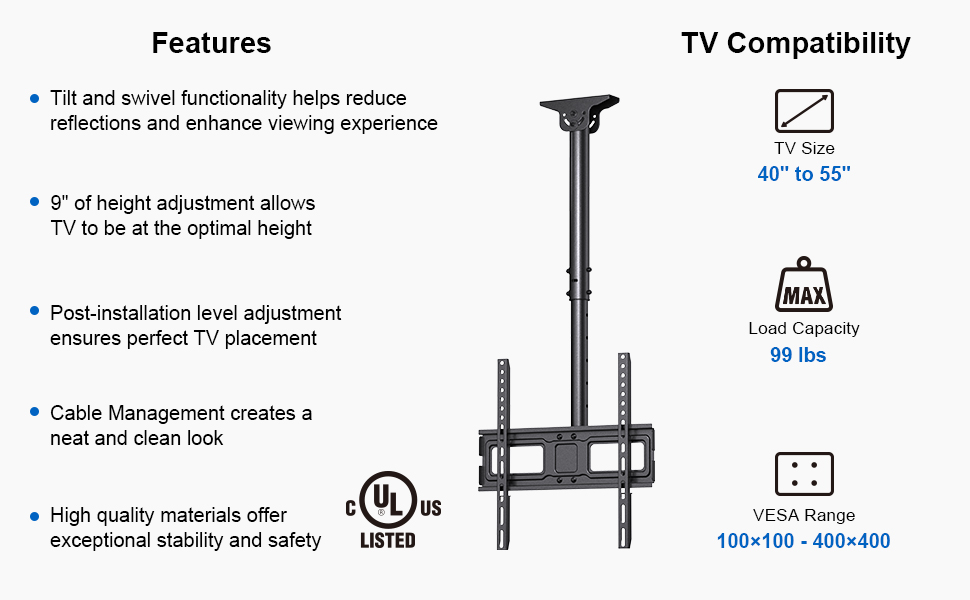

Key Features:

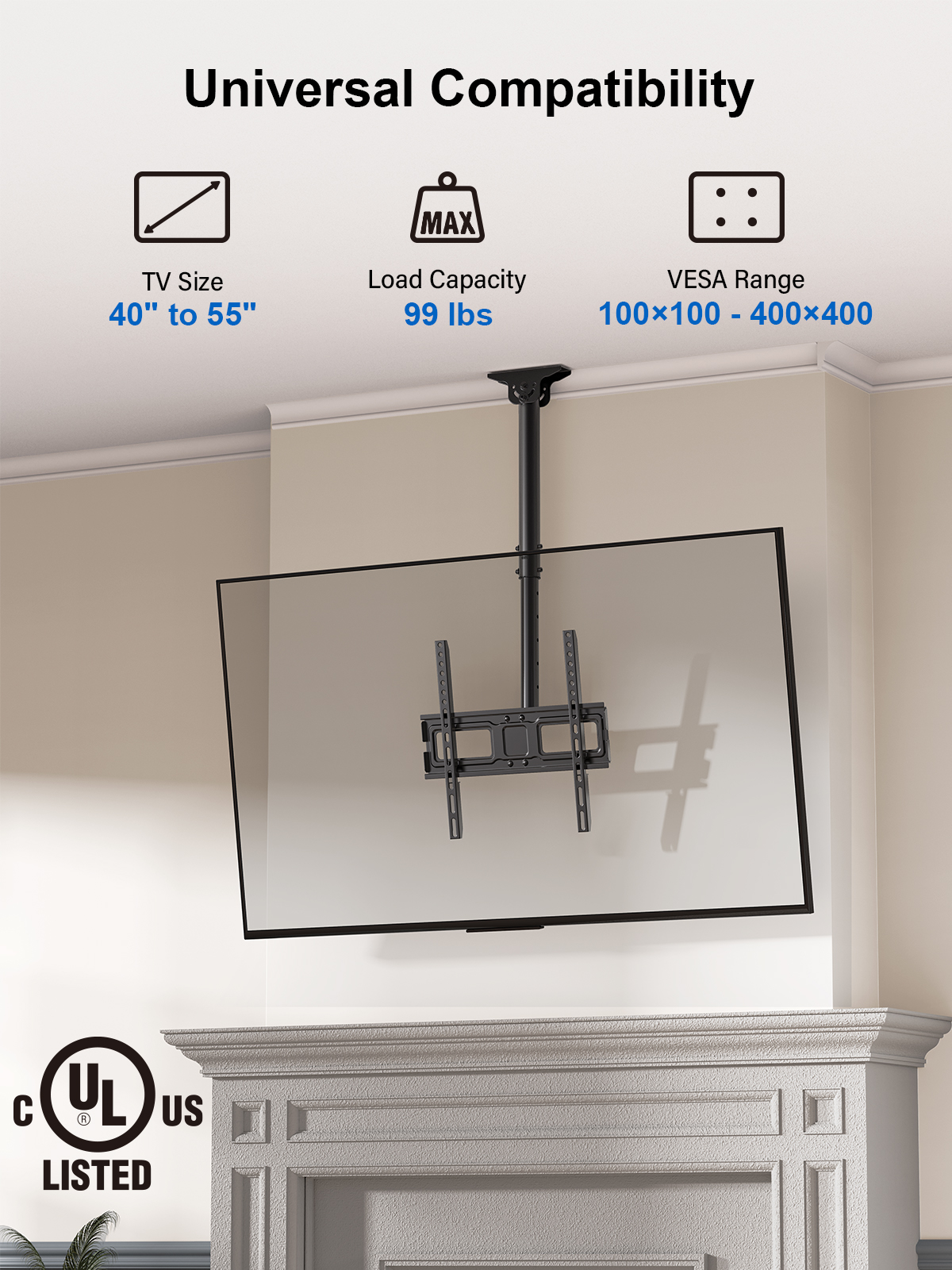

Universal Compatibility: Fits most 40″–55″ TVs with VESA patterns from 100 x 100 mm to 400 x 400 mm, up to 99 lbs.
Tilt & Swivel Adjustments: Minimize glare and optimize the viewing angle.

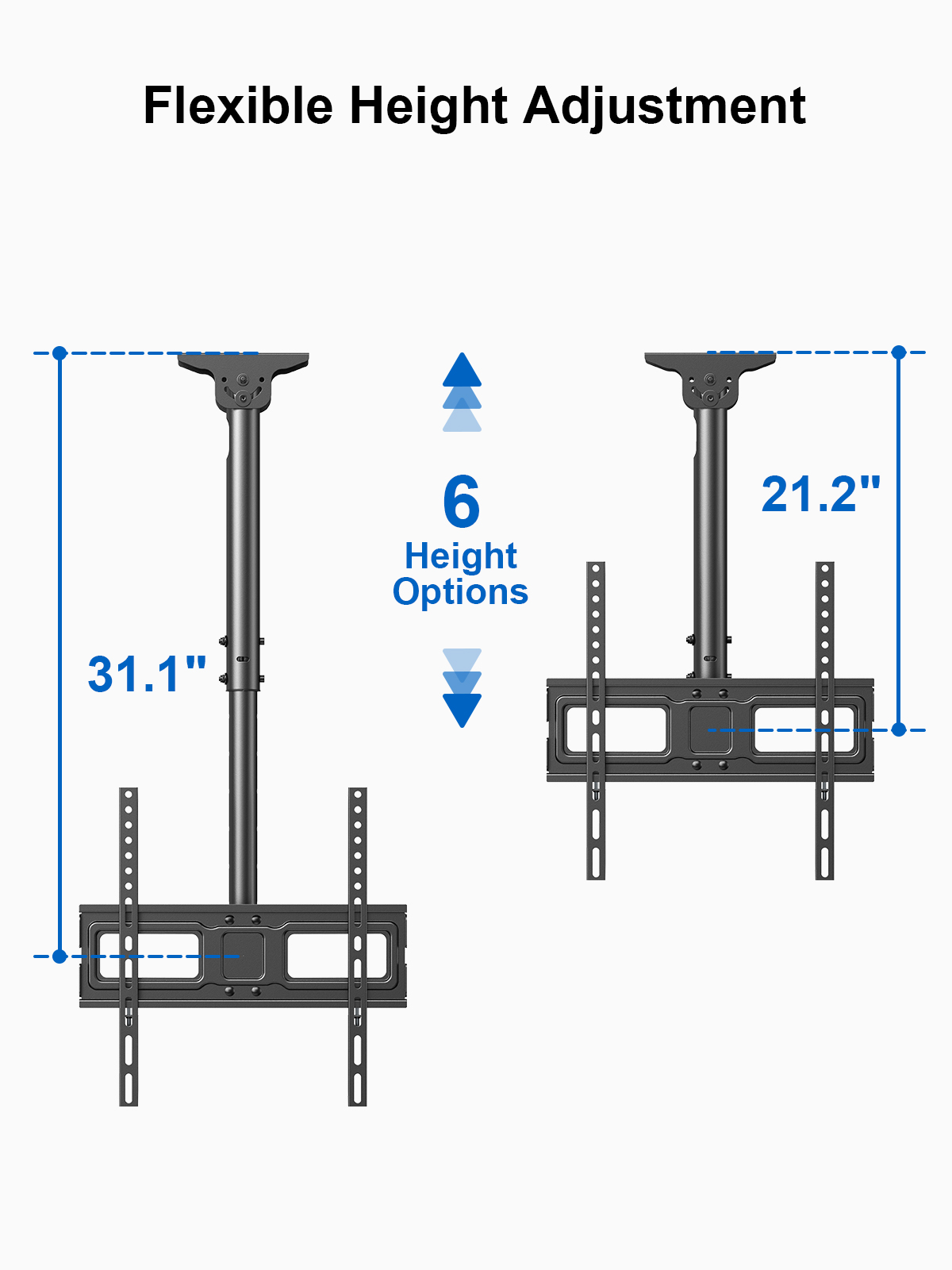

Height Adjustable: 9″ of vertical movement to set your TV at the right height.
Post-Install Leveling: Easily fine-tune your TV’s position after mounting.
Quick & Easy Installation: Includes clear instructions and a universal hardware kit.

$99.99

Cable Management and Access

Ease of Install

Height Adjustment

Minimal Reflections

Post Install Adjustments

Seating Locations

UL Listed Certification

TV Size Range	40" – 55"
Weight Capacity	99 lbs.
VESA Pattern Min	100 x 100
VESA Pattern Max	400 x 400
Product Dimensions	16.93 x 38.15 x 4.15
Package Dimensions	17.32 x 5.75 x 2.99 in

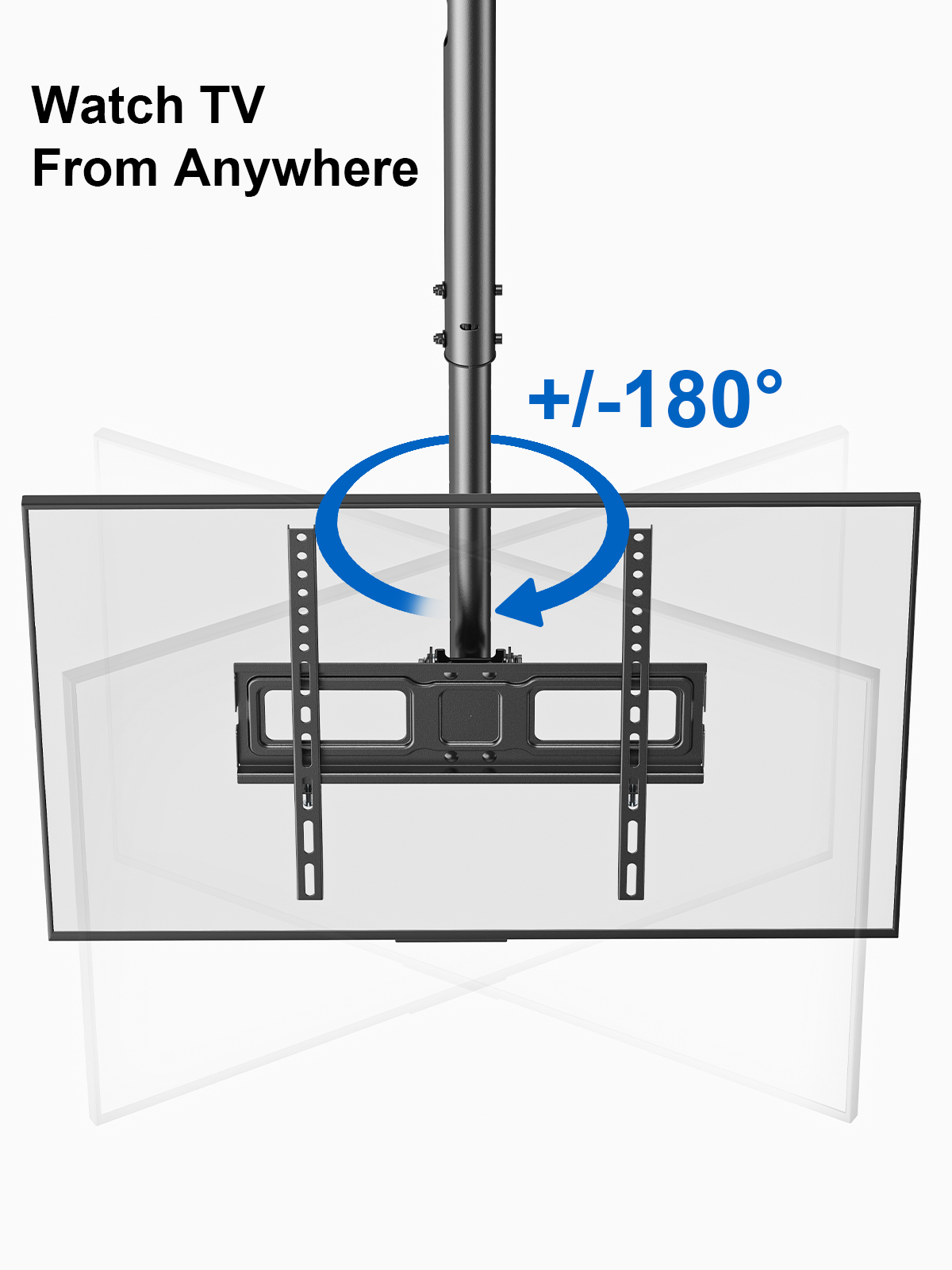

Swivel Range	360 °, Ceiling Bracket 128 °

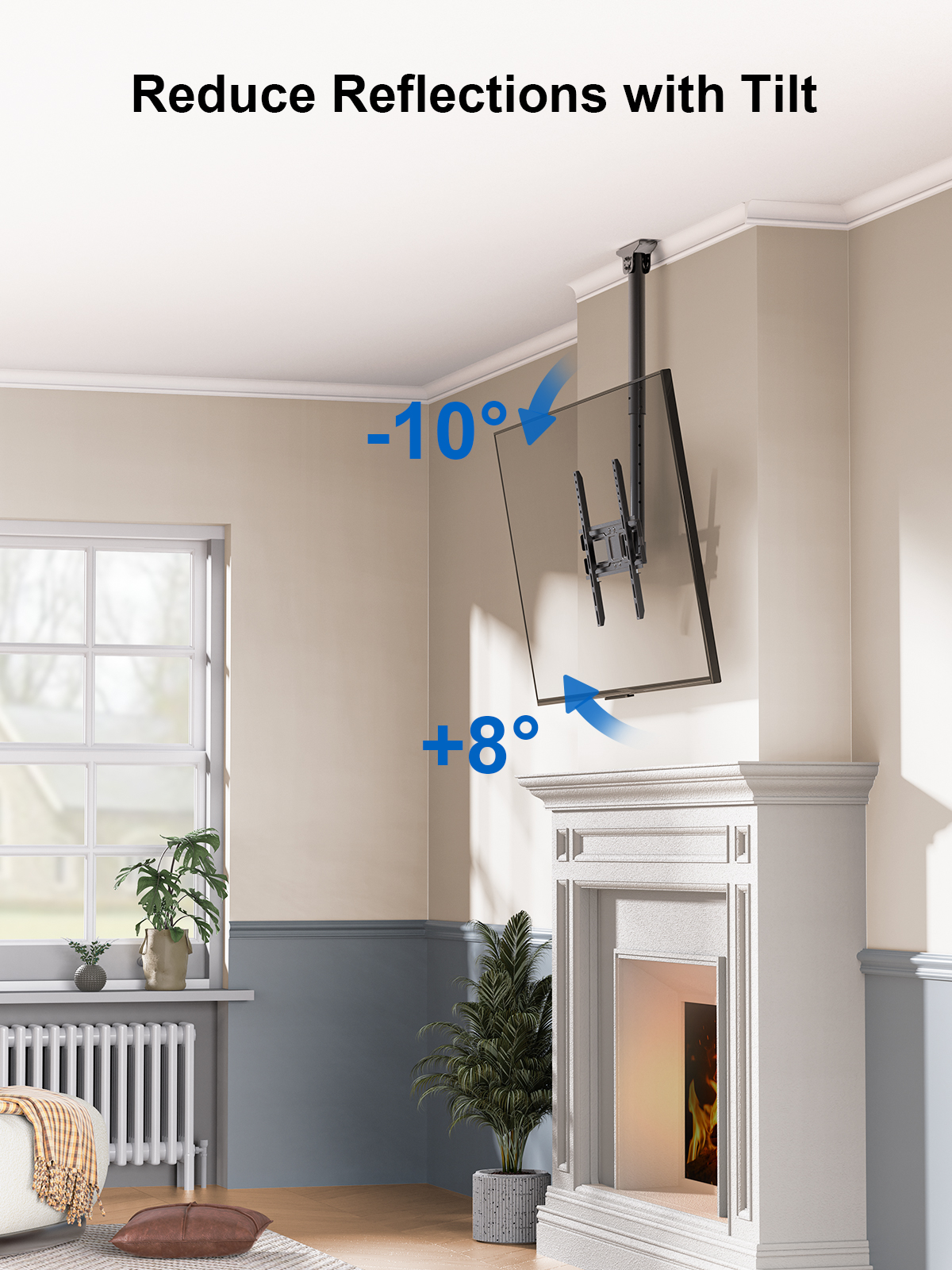

Tilt Range	+8 °/ -10 °
Height Adjustment	9"
Height Adjustment Positions	6
Cable Management	Yes
Stud Spacing	Single Beam
Supported Surfaces	Ceiling Joist, Concrete
UL Listed	Yes

ERMCM1-01B Installation Manual

ERMCM1-01B Technical Drawing

ERMCM1-01B Sell Sheet
